Sony

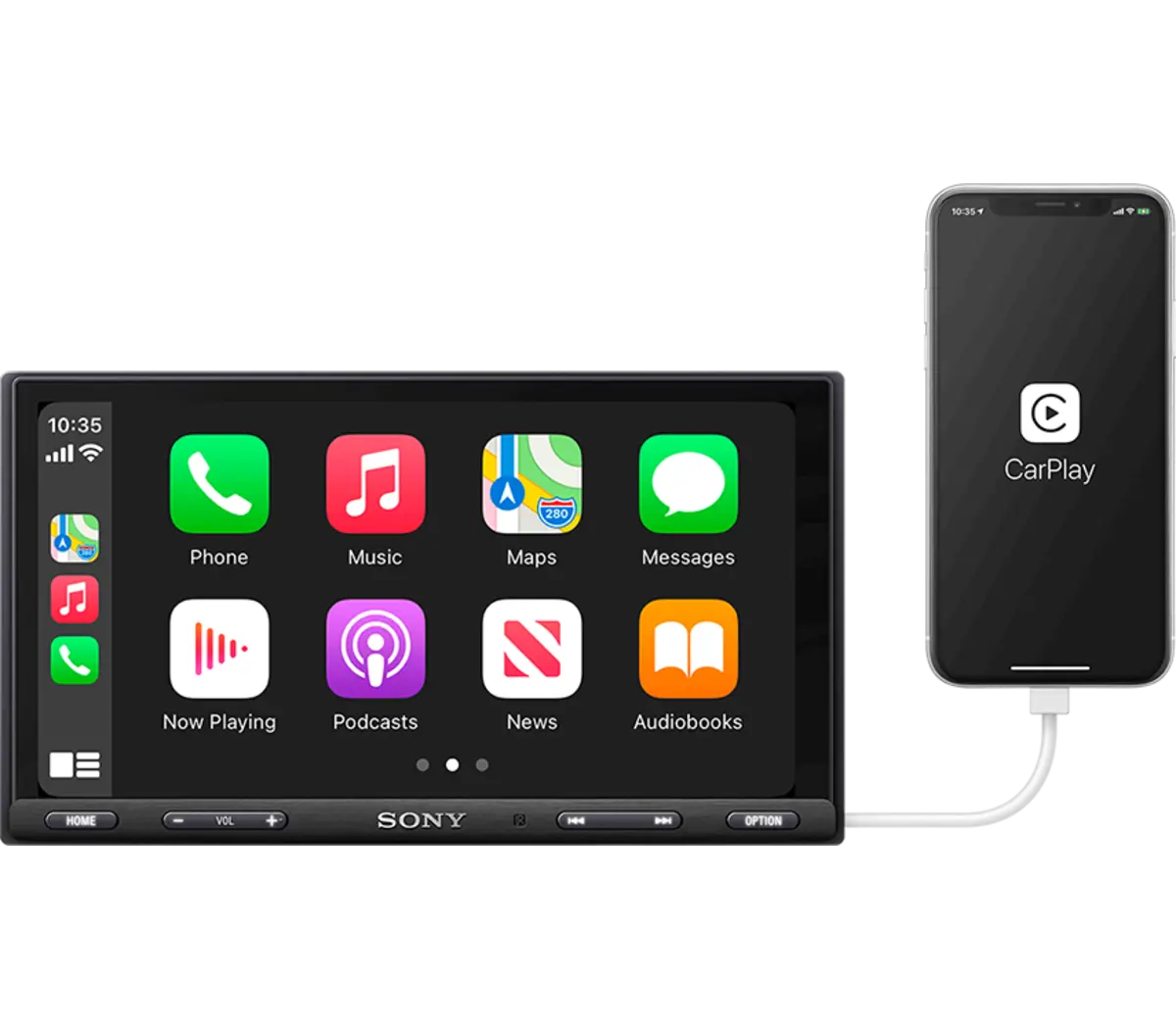

SONY XAV-AX5600 HARLEY DAVIDSON 14 UP REPLACEMENT RADIO
SONY XAV-AX5600 HARLEY DAVIDSON 14 UP REPLACEMENT RADIO
Couldn't load pickup availability
About This Item
Mirror and control selected smartphone apps with WebLink™ Cast
- Bezel-less capacitive touchscreen for a seamless display
- Dual USB ports let you connect a smartphone and USB device simultaneously
- Build your own system with 3 x 5-V pre-outs
- HDMI input for an external source device
Bluetooth Audio Features
Audio Codec (Bluetooth Audio)
SBC / AAC
Audio Level Adjustment
Yes (-6 dB to +6 dB)
Cue / Rev
Yes
Group (Folder) +/-
Yes
Meta Data Indication
Yes
Pause (Bluetooth Audio)
Yes
Repeat Control (Audio Device side)
Yes
Shuffle Control (Audio Device side)
Yes
Track +/-
Yes
Bluetooth Features
Alphabetical Phonebook Sorting
Yes
Call Volume Level Control
Yes
External Microphone
Supplied
Last Dialed Call
YES (select from the dialed call history)
Phone Battery Level Reminder
Yes
Phonebook Access via PBAP
Yes
Recent Calls (# of)
Yes
Ring Volume Level Control
Yes
Signal Strength Indication
Yes
Speed Dial
Yes (6 memories)
Bluetooth Profile
A2DP
Yes (1.3)
AVRCP
Yes (1.3)
HFP 1.5
Yes (1.6)
PBAP
Yes (1.1)
Connectivity
Bluetooth
Yes
Display Panel
Dimmer Adjust
Yes
Key Illumination
Yes (White)
General Features
DSO (Dynamic Stage Organizer)
Yes
EXTRA BASS
Yes (Off/1/2)
Equalizer
10-band Graphic Equalizer
Firmware upgradability
Yes
Output Power
55 W x4
Pre Out
3 Pre (Front/Rear/Sub x 1)
Rear View Camera in
Yes
USB
Yes (Rear x2)
Apple CarPlay
Yes
Android Auto
Yes
Weblink
Yes
Monitor(AVC)
Brightness
500 cd/m2
Contrast Ratio
400
Dimmer
Yes
LCD Type
TFT Active Matrix
Resolution (DOT)
800 x 480
Screen Aspect
17: 9
Screen Diagonal (inch / mm)
6.95 inch
Screen Size (W x H mm)
156.6 x 81.6 (mm)
Multi-Language
Caution
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
ID3 Tag
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
Menu
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
Panel Design
Key Illumination
Yes (White)
Panel Surface Finish Color
Black
Size & Weight
Dimensions (W x H x D)
7.01 x 3.94 x 5.47 inches
Weight
2.20 lb
Tuner Features
Auto Memory
BTM
Preset
FM18 / AM12
RDS / EON
Yes (RBDS)
USB Mass Storage Device Control Feature
USB Device Control (Audio Codec)
USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC
USB Device Control (Pause)
Yes
USB Device Control (Repeat)
TRACK / FOLDER / DRIVE
USB Device Control (Resume Play)
Yes
USB Device Control (Shuffle)
OFF / FOLDER / DEVICE
USB Device Control (Video Codec)
Only USB1: MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD
USB device control (audio playable file extension)
USB1: .wav / .mp3 / .wma / .m4a / .flac, USB2: .mp3 / .wma / .flac
USB device control (video playable file extension)
Only USB1: .mp4 / .wmv / .mkv
User Interface
Aspect Ratio Select
Yes
Gesture Command
Yes
Parking Control
Yes
Parking Line Adjust
Yes
Rear View Camera-In Marker Setting
Yes
Remote Commander
RM-X170
Touch Panel
Yes/Capacitive
