MMATS

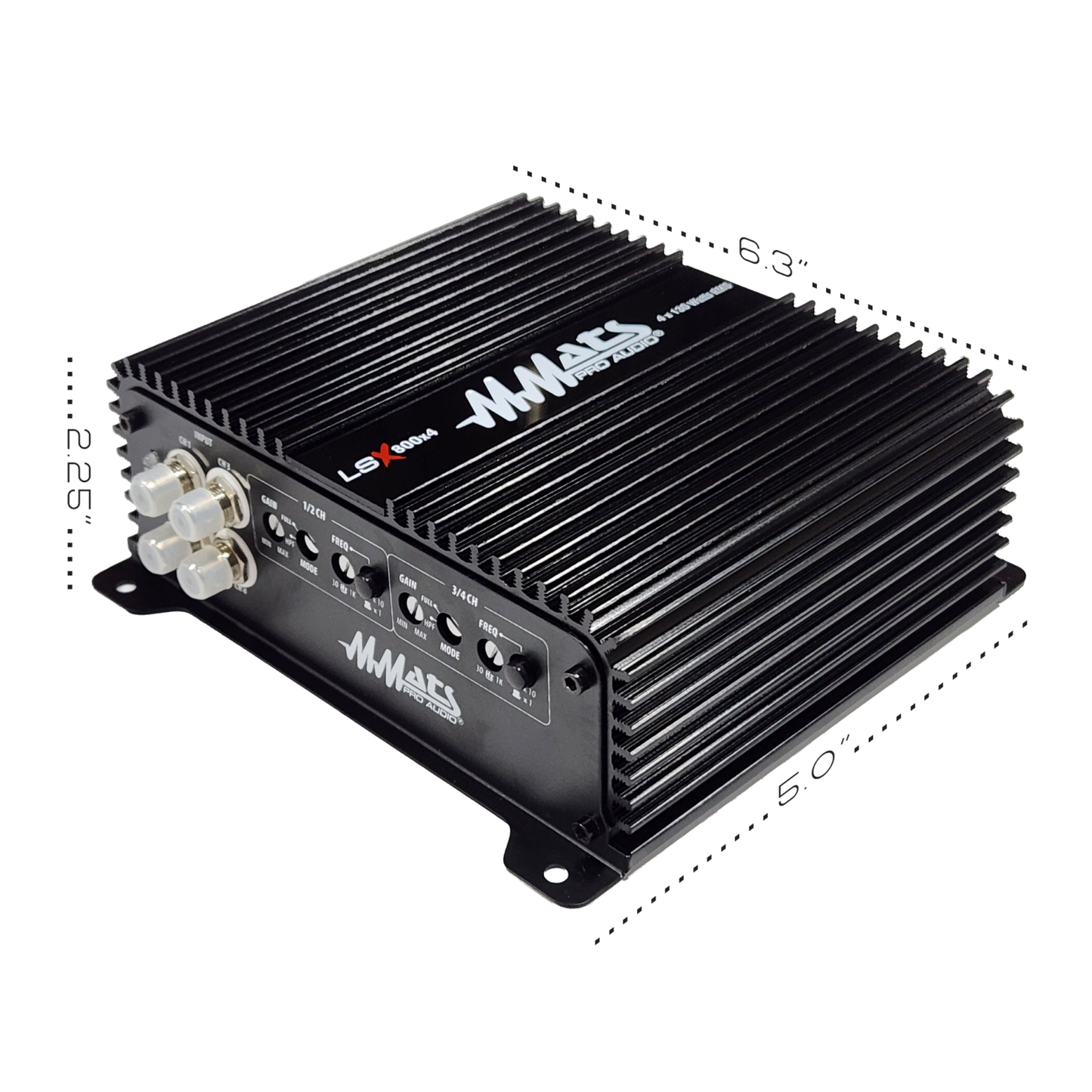

LSX800x4
LSX800x4
Regular price
$449.00 USD
Regular price
Sale price
$449.00 USD
Unit price
/
per
Couldn't load pickup availability
TECHNICAL SPECIFICATIONS
|
|
|
Power @ 4Ω stereo: Power @ 2Ω stereo: Power @ 4Ω mono: Operating Voltage: Rated Voltage: Current Draw (Music): Current Draw (Max): Recommended Fuse: Efficiency @ Full Power: Damping Factor: Frequency Response (-3dB): SNR: THD + N: Product Dimensions: |
4 x 130 WRMS 4 x 220 WRMS 2 x 440 WRMS 8V – 16V 13.8V 10A 64 A 50 A 88% @ 2-ohm stereo Resistive >1000 10Hz – 22Khz 98dB 0.1% 5.0 x 6.3 x 2.25 inches |
FEATURES |
|
|
Gain: LPF: HPF: Fixed Sub-sonic Filter @ Full-pass: Protection: Power light: ULTRA Efficient Heatsin: 2-Gauge Battery Terminal 12-Gauge Speaker Terminal |
.2V – 10V 20Hz – 700hz 30Hz – 1Khz/10Khz (via 10x switch) 30Hz Full range from 30Hz if needed Over-current, Short and Thermal Blue/Power – Red/Protect Proprietary Tooling |
Note: This amplifier will not run subwoofers
