DC Audio

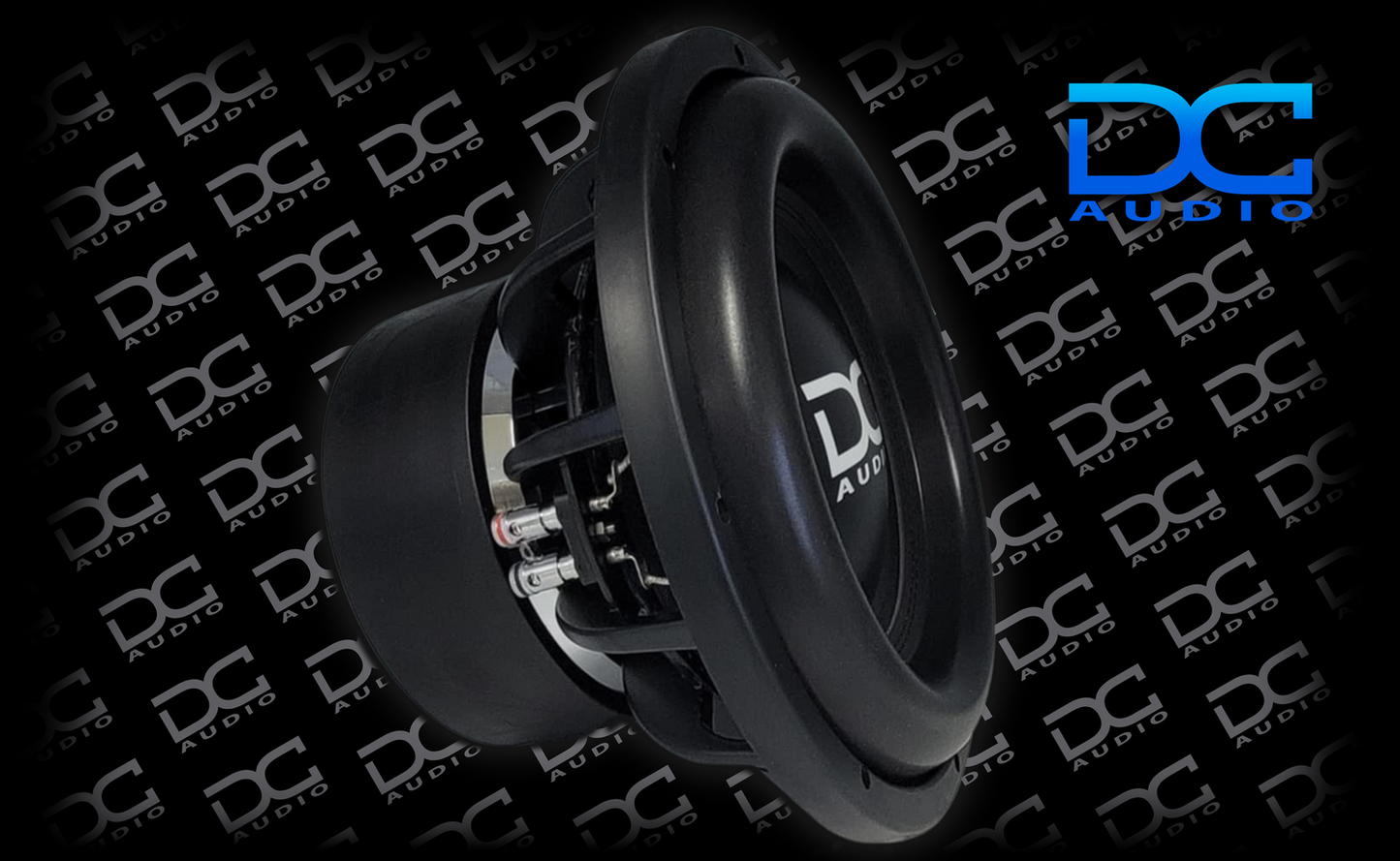

DC Audio Level 4 (Contact for Pricing)
DC Audio Level 4 (Contact for Pricing)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
| Level 4 Subwoofer | 10" | 12" |
|---|---|---|
| Mounting Depth | 6.25" | 6.75" |
| Mounting Hole Diameter | 9.35" | 11" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 3.0" | 3.0" |
| Displacement | .16 ft³ | .18 ft³ |
| Power Handling rms/peak | 1500/3000 | 1500/3000 |
| Ohm Options | d1/d2/d4 | d1/d2/d4 |
| Sd | 344 cm² | 457 cm² |
| Vas | 8.97 L | 13.68 L |
| Cms | 53.14 uM/n | 46.06 uM/n |
| Mms | 242.94 g | 324.60 g |
| Fs | 44.29 Hz | 41.15 Hz |
| Bl | 20.94 N/A | 21.34 N/A |
| Re | 4.24 Ohm | 4.61 Ohm |
| Le | 2.61 mH | 2.32 mH |
| Qms | 8.16 | 9.30 |
| Qes | 0.65 | 0.84 |
| Qts | 0.606 | 0.778 |
| Xmax | 23.5mm | 23.5mm |
| Ref SPL @1 watt | 82.50db | 83.24db |
| Suggest Sealed Box | .75 ft³ | 1.0 ft³ |
| Suggested Ported Box | 1.0 ft³ | 1.5 ft³ |
