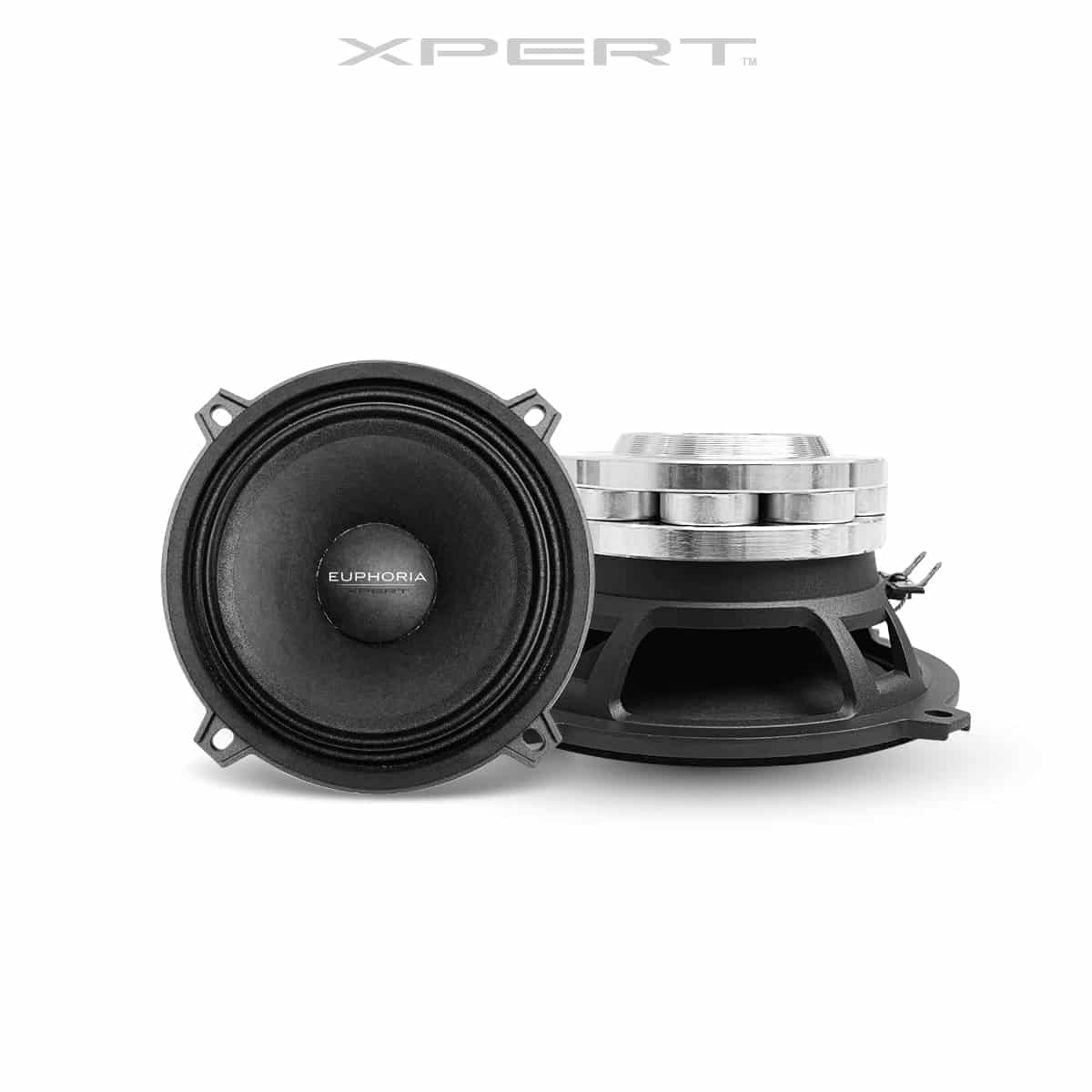

DB DRIVE EUPHORIA XPERT EXM5N MIDRANGE (SINGLE)
DB DRIVE EUPHORIA XPERT EXM5N MIDRANGE (SINGLE)
Regular price
$179.98 USD
Regular price
Sale price
$179.98 USD
Unit price
per
Couldn't load pickup availability
- 1.5″ (38.1mm) Voice Coil
- Neodymium 8 Piece Radially Equalized Magnet Assembly
- IP52 Rated Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 182.2Hz |
| D.C. Voice Coil Resistance (Re) | 3.0Ω |
| Mechanical Quality Factor (Qms) | 9.42 |
| Electrical Quality Factor (Qes) | 0.45 |
| Total Quality Factor (Qts) | 0.43 |
| Compliance Equivalent Volume (Vas) | 1.3L |
| Mechanical Compliance (Cms) | 0.12 mm/N |
| Efficiency (1W/1M) | 96.3 dB |
| REPLACEMENT DIAPHRAGM: EXM5N-RC |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 175 Watts |
| Dynamic Wattage | 350 Watts |
| Sensitivity (1w/1m) | 96.3 dB |
| Voice Coil Diameter | 1.5″ (38.1mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 2.6″ (66mm) |
| Mounting Diameter: | 4.65″ (118mm) |
