Euphoria Xpert

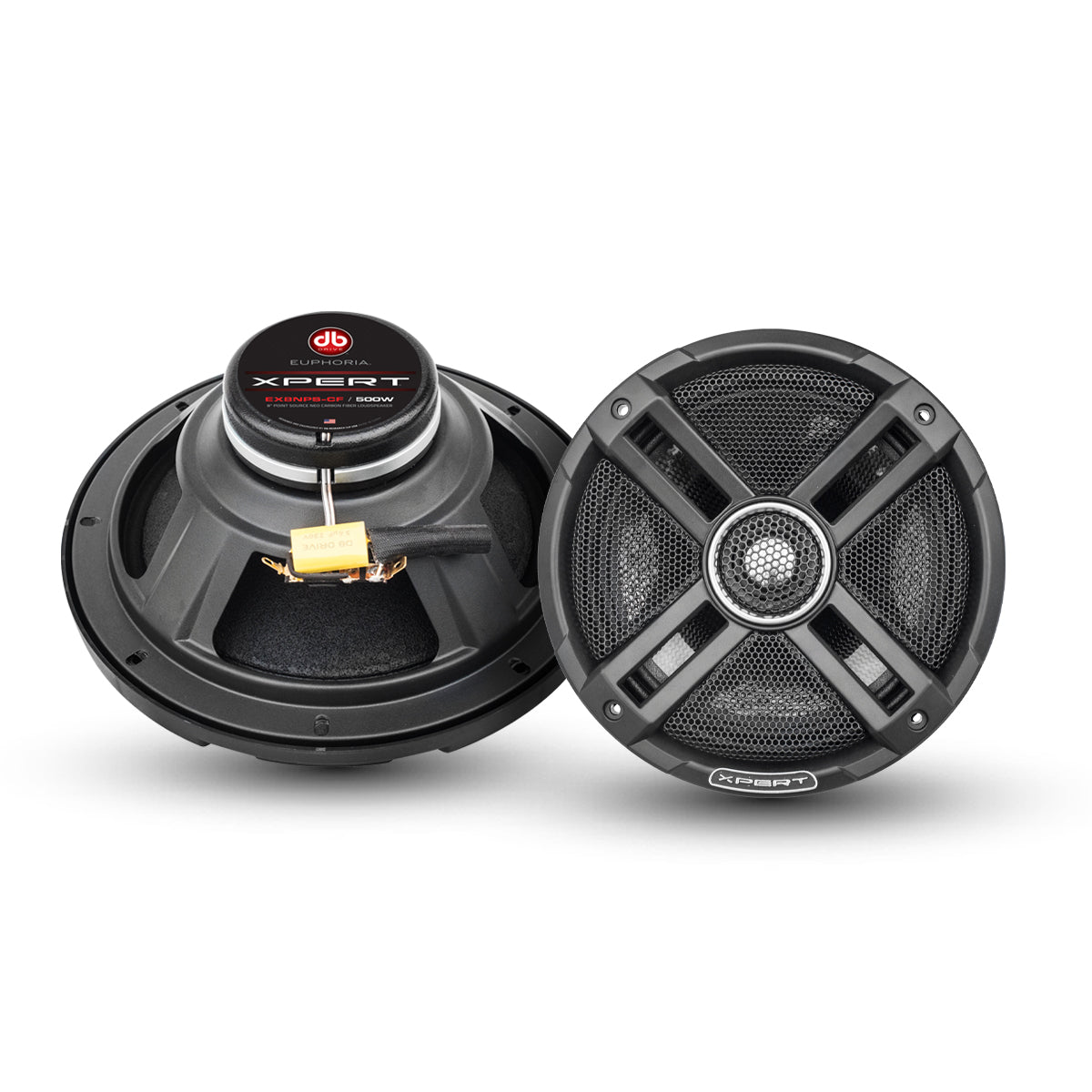

DB DRIVE EUPHORIA XPERT - EX8NPS-CF - 8″ POINT SOURCE NEO CARBON FIBER LOUDSPEAKER

DB DRIVE EUPHORIA XPERT - EX8NPS-CF - 8″ POINT SOURCE NEO CARBON FIBER LOUDSPEAKER

$549.98 USD
$549.98 USD
Sale Sold out



FEATURES

      • 1.5″ (38.1mm) Midrange voice coil
      • High-intensity NEO ring magnet
      • IP65 rated weather resistant Carbon fiber cone
      • Cloth surround
      • Stamped steel basket
      • Wide dispersion 1″ aluminum dome tweeter
      • Protective grill
      T/S PARAMETERS
      Resonant Frequency (fs) 62.3Hz
      D.C. Voice Coil Resistance (Re) 3.2Ω
      Mechanical Quality Factor (Qms) 5.23
      Electrical Quality Factor (Qes) 0.43
      Total Quality Factor (Qts) 0.40
      Compliance Equivalent Volume (Vas) 19.6L
      Mechanical Compliance (Cms) 0.28 mm/N
      REPLACEMENT DIAPHRAGM:
      ADDITIONAL SPECS
      Nominal Impedance 4Ω
      Power Handling 275 Watts
      Dynamic Wattage 500 Watts
      Sensitivity (1w/1m) 92.3 dB
      Frequency Response 80Hz – 19KHz



      DIMENSIONS
      Mounting Depth: 3.09″ (78.50mm)
      Cutout Diameter: 7.08″ (180mm)
