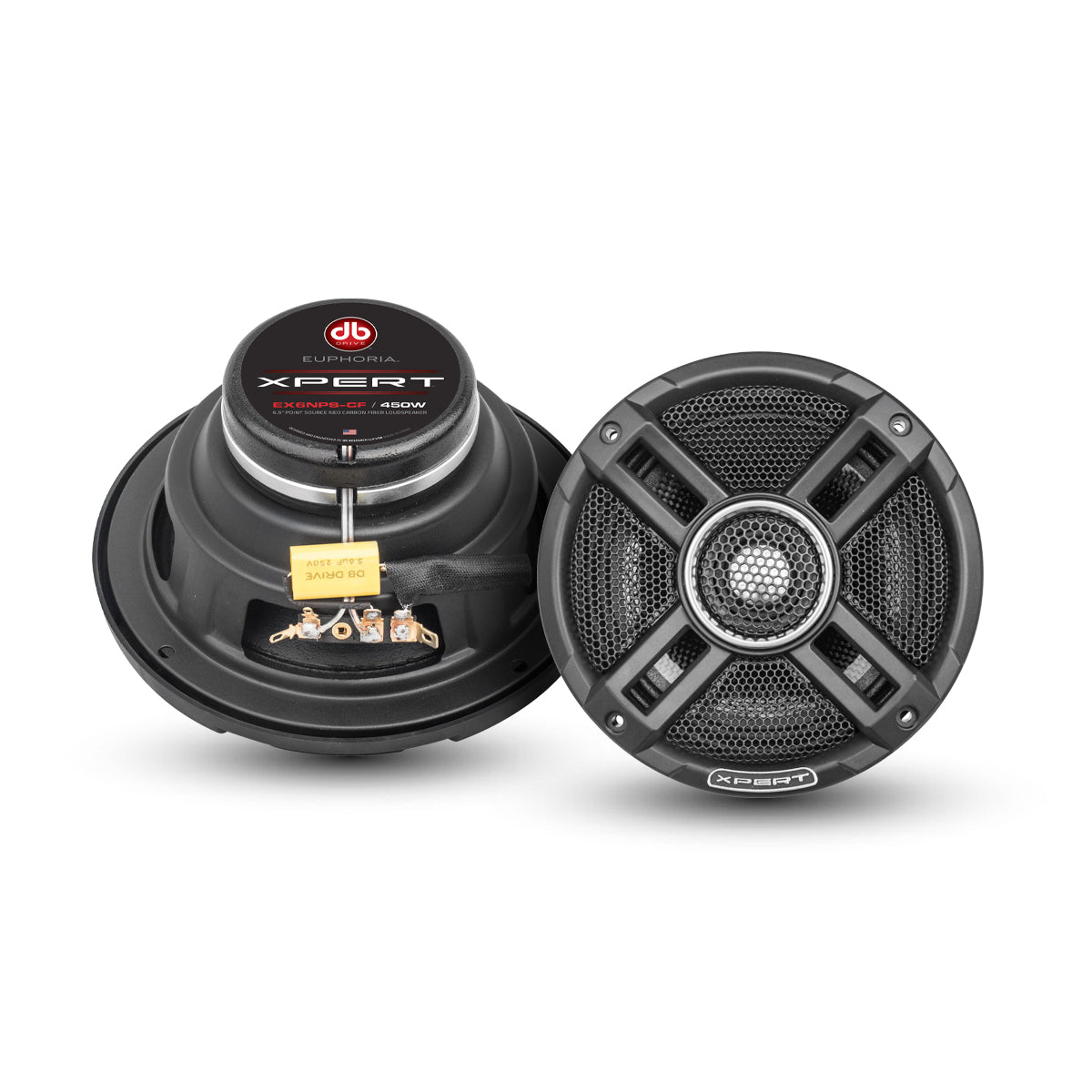

DB DRIVE EUPHORIA XPERT - EX6NPS-CF 6″ POINT SOURCE NEO CARBON FIBER LOUDSPEAKER

DB DRIVE EUPHORIA XPERT - EX6NPS-CF 6″ POINT SOURCE NEO CARBON FIBER LOUDSPEAKER

$469.98 USD
$469.98 USD
Sale Sold out



FEATURES

    • 1.5″ (38.1mm) Midrange voice coil
    • High-intensity NEO ring magnet
    • IP65 rated weather resistant Carbon fiber cone
    • Cloth surround
    • Stamped steel basket
    • Wide dispersion 1″ aluminum dome tweeter
    • Protective grill
    T/S PARAMETERS
    Resonant Frequency (fs) 82.9Hz
    D.C. Voice Coil Resistance (Re) 3.2Ω
    Mechanical Quality Factor (Qms) 7.03
    Electrical Quality Factor (Qes) 0.38
    Total Quality Factor (Qts) 0.36
    Compliance Equivalent Volume (Vas) 5.0L
    Mechanical Compliance (Cms) 0.20 mm/N
    REPLACEMENT DIAPHRAGM:
    ADDITIONAL SPECS
    Nominal Impedance 4Ω
    Power Handling 225 Watts
    Dynamic Wattage 450 Watts
    Sensitivity (1w/1m) 90.6 dB
    Frequency Response 82Hz – 19KHz



    DIMENSIONS
    Mounting Depth: 2.8″ (71.2mm)
    Cutout Diameter: 5.78″ (147mm)
