Euphoria Xpert

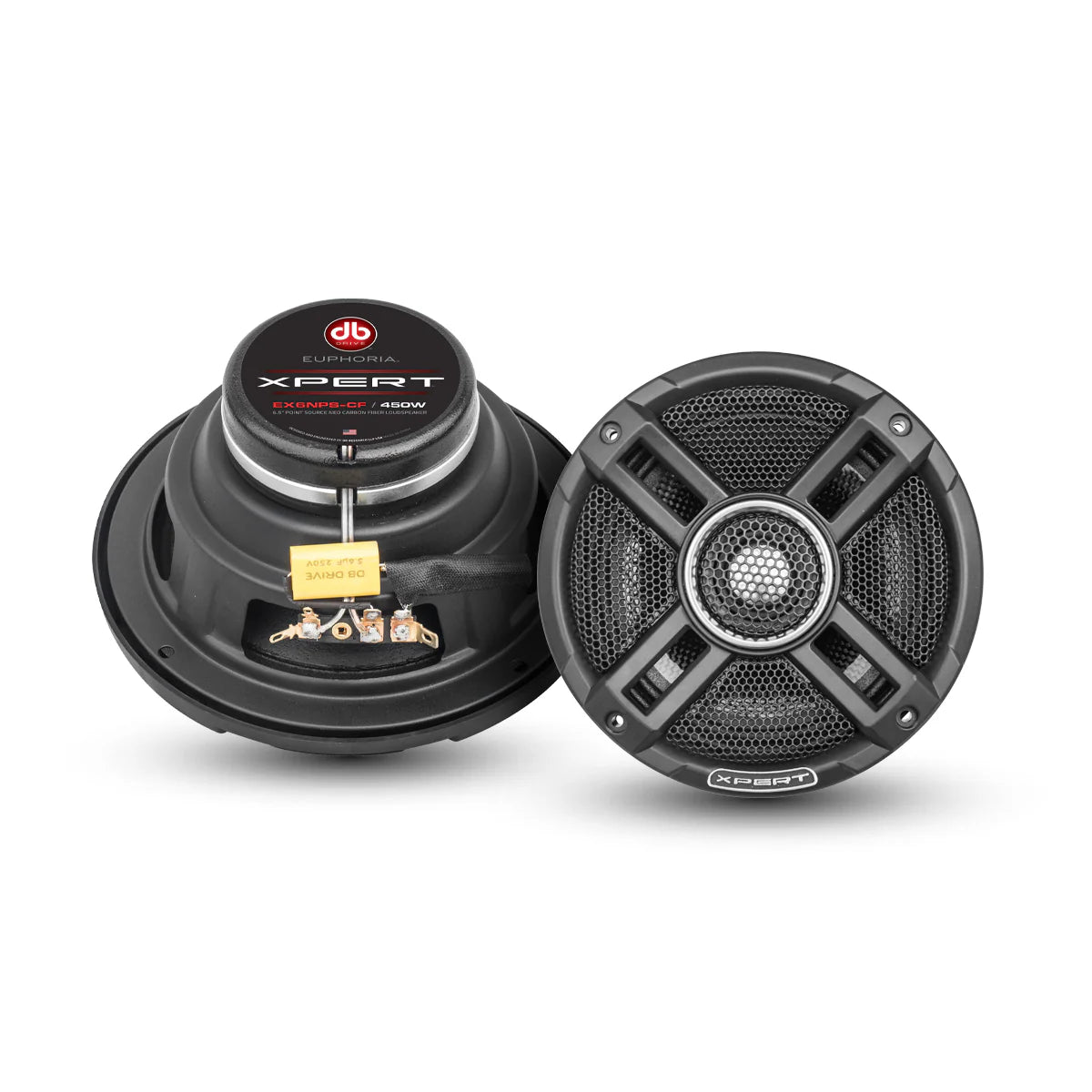

DB DRIVE EUPHORIA XPERT - EX6NPS-CF - 6.5″ POINT SOURCE NEO CARBON FIBER LOUDSPEAKER

DB DRIVE EUPHORIA XPERT - EX6NPS-CF - 6.5″ POINT SOURCE NEO CARBON FIBER LOUDSPEAKER

$469.98 USD
$469.98 USD
Sale Sold out

Features



  • 1.5″ (38.1mm) Midrange voice coil
  • High-intensity NEO ring magnet
  • IP65 rated weather resistant Carbon fiber cone
  • Cloth surround
  • Stamped steel basket
  • Wide dispersion 1″ aluminum dome tweeter
  • Protective grill
T/S PARAMETERS
Resonant Frequency (fs) 82.9Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 7.03
Electrical Quality Factor (Qes) 0.38
Total Quality Factor (Qts) 0.36
Compliance Equivalent Volume (Vas) 5.0L
Mechanical Compliance (Cms) 0.20 mm/N
REPLACEMENT DIAPHRAGM:
ADDITIONAL SPECS
Nominal Impedance 4Ω
Power Handling 225 Watts
Dynamic Wattage 450 Watts
Sensitivity (1w/1m) 90.6 dB
Frequency Response 82Hz – 19KHz



DIMENSIONS
Mounting Depth: 2.8″ (71.2mm)
Cutout Diameter: 5.78″ (147mm)
View full details
