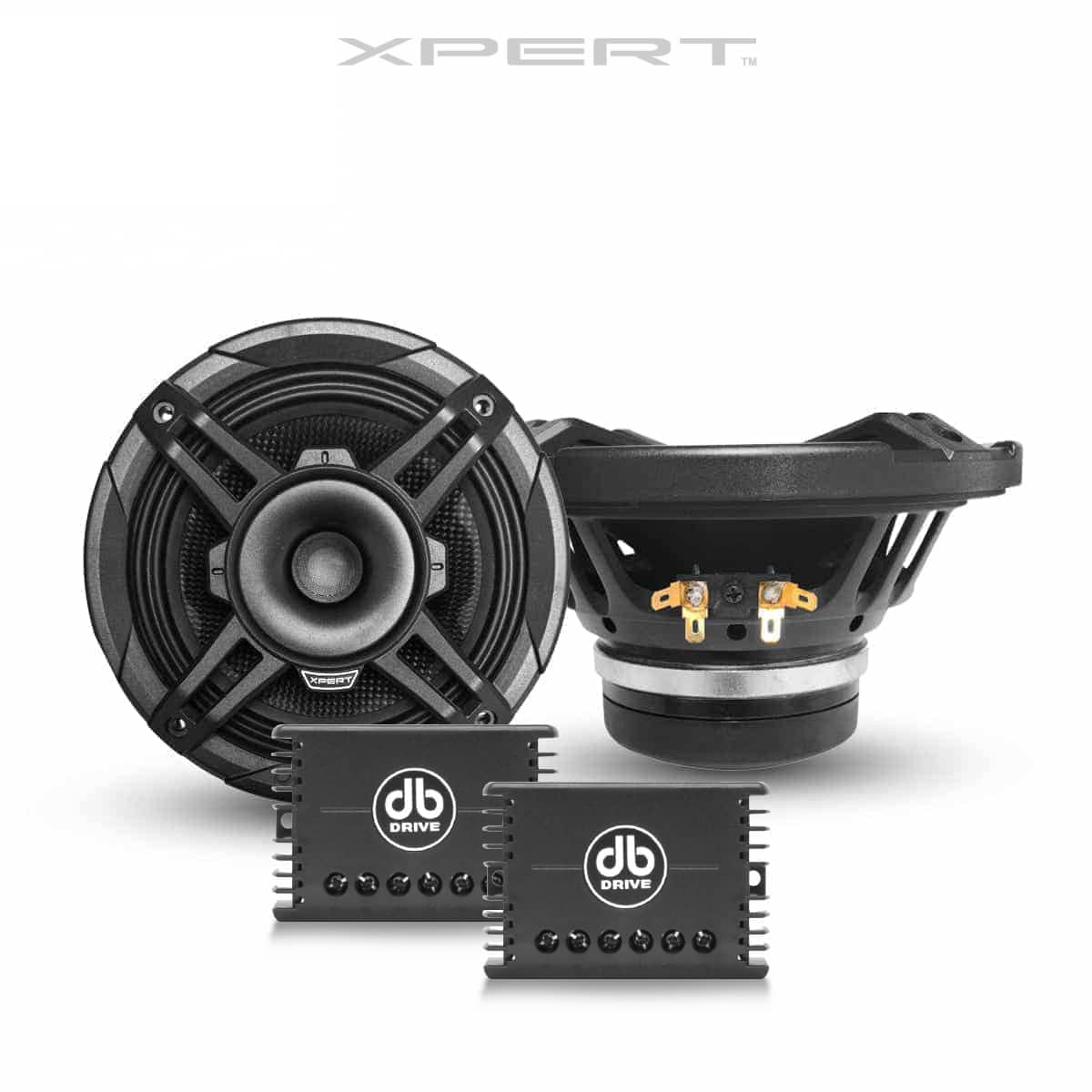

DB DRIVE EUPHORIA XPERT EX6NCD-CF 6.5″ CARBON FIBER 2-WAY LOUDSPEAKER - COAX
DB DRIVE EUPHORIA XPERT EX6NCD-CF 6.5″ CARBON FIBER 2-WAY LOUDSPEAKER - COAX
Regular price
$799.98 USD
Regular price
Sale price
$799.98 USD
Unit price
per
Couldn't load pickup availability
- 6.5″ 2-Way Carbon Fiber Loudspeaker
- 2.0″ (51mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- Rear Mounted Full Sized Compression Driver
- IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting
- 1.4″(36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide
- 12dB Passive Crossover Included
- Protective Grills Included
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 61.2Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 4.82 |
| Electrical Quality Factor (Qes) | 0.32 |
| Total Quality Factor (Qts) | 0.30 |
| Compliance Equivalent Volume (Vas) | 6.3L |
| Mechanical Compliance (Cms) | 0.28 mm/N |
| Efficiency (1W/1M) | 105.7 dB |
| REPLACEMENT DIAPHRAGM: EXNCD-RC |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 400 Watts |
| Dynamic Wattage | 800 Watts |
| Sensitivity (1w/1m) | 105.7 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 3.41″ (86.64mm) |
| Mounting Diameter: | 5.75″ (146mm) |
