Euphoria Xpert

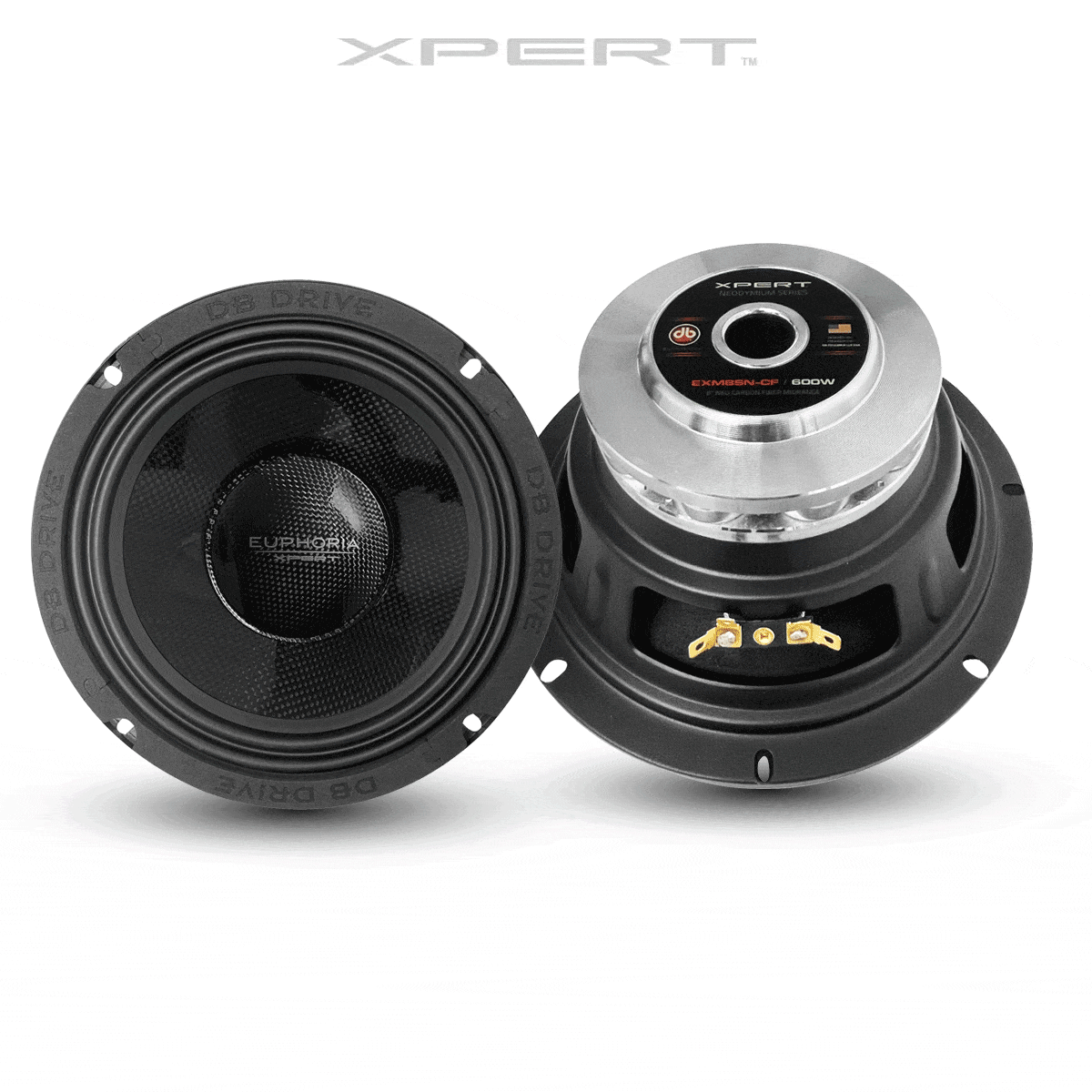

DB DRIVE EUPHORIA XPERT 8" - EXM8SN-CF MIDRANGE (SINGLE)

DB DRIVE EUPHORIA XPERT 8" - EXM8SN-CF MIDRANGE (SINGLE)

$269.98 USD
$269.98 USD
Sale Sold out



  • 8” NEO CARBON FIBER MID-RANGE

    • 2” (51 mm) Midrange Voice Coil
    • 10 Neodymium Ring Magnet Assembly
    • IP65 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
    • Heavy Gauge Stamped Steel Basket
    T/S PARAMETERS
    Resonant Frequency (fs) 74.4Hz
    D.C. Voice Coil Resistance (Re) 3.2Ω
    Mechanical Quality Factor (Qms) 8.81
    Electrical Quality Factor (Qes) 0.54
    Total Quality Factor (Qts) 0.51
    Compliance Equivalent Volume (Vas) 8.0L
    Mechanical Compliance (Cms) 0.13 mm/N
    REPLACEMENT DIAPHRAGM:
    ADDITIONAL SPECS
    Nominal Impedance 4Ω
    Power Handling 300 Watts
    Dynamic Wattage 600 Watts
    Sensitivity (1w/1m) 99.7 dB
    Voice Coil Diameter 2.0″ (51mm)

    DIMENSIONS
    Mounting Depth: 3.43″ (87mm)
    Cutout Diameter: 7.13″ (181mm)
