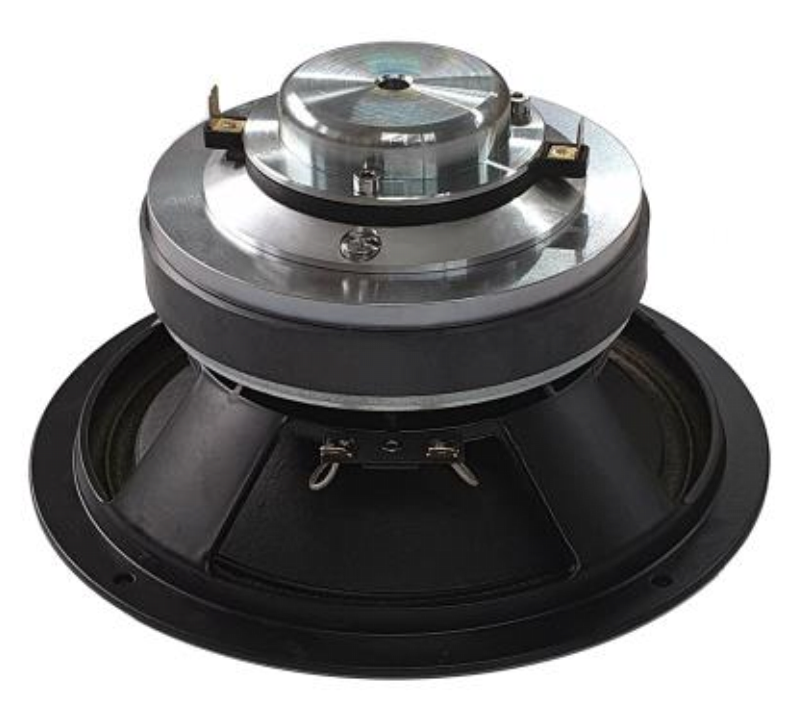

Ciare - CXI200
Ciare - CXI200
Couldn't load pickup availability
Specifications LF unit
Sensitivity
99 dB
Continuous Power Handling
450 W
Winding Material
Copper
Nominal Impedance
4 Ω
Former Material
Glass Fiber
Nominal Power Handling
220 W
Voice Coil Diameter
50.8 mm (2 in)
Nominal Diameter
203.2 mm (8 in)
Frequency Range
80 Hz - 2500 Hz
Winding Depth
12.5 mm (0.49 in)
Specifications HF unit
Sensitivity
105 dB
Continuous Power Handling
250 W
Winding Material
Aluminum
Nominal Diameter
25.4 mm (1 in)
Frequency Range
2000 kHz - 20000 kHz
Nominal Power Handling
150 W
Voice Coil Diameter
44.45 mm (1.75 in)
Throat Diameter
25.4 mm (1 in)
Nominal Impedance
8 Ω
Diaphragm Material
Mylar
Design
Cone Shape
Exponential
Recommended Enclosure
7 dm³ (0.25 ft³)
Recommended Loading
Vented Box
Suspension
Nomex Fabric
Magnet Material
Ferrite
Recommended Tuning
90 Hz
Connection Type
Fast-On
Cone Material
Doped cellulose fiber
Parameters
Fs
88 Hz
Qes
0.36
Qts
0.35
Sd
214 cm² (33.17 sq²)
Xmax
4.5 mm (0.18 in)
Bl
9.3 Tm
d
165 mm (6.5 in)
Re
2.8 Ω
Qms
10.89
Vas
8.8 dm³ (0.31 ft³)
η0
1.6 %
Mms
20 g
Le
0.35 mH
EBP
244 Hz
Mounting and Shipping Info
Exit Size
1 in
Bolt Circle Diameter
194.06 mm (7.64 in)
Depth
115.06 mm (4.53 in)
Net Weight
3.8 kg (8.38 lb)
Basket Material
Aluminium
Bolt Diameter
194.06 mm (7.64 in)
Overall Diameter
203.2 mm (8 in)
Baffle Cutout Diameter
145 mm (7.28 in)
Flange and Gasket Thickness
11 mm (0.43 in)
Shipping Units
4 pcs
Bolt Quantity
4 pcs
