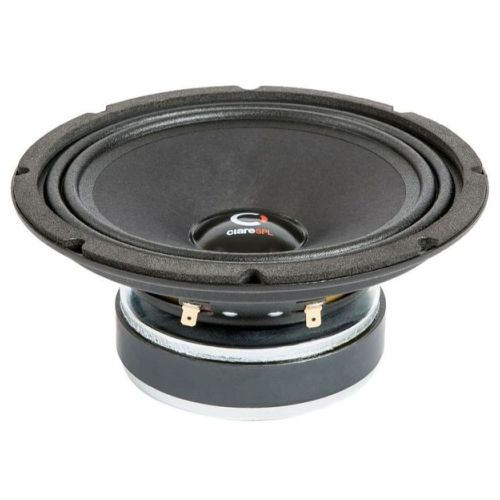

Ciare - CME200
Ciare - CME200
Couldn't load pickup availability
Specifications
Nominal Diameter
200 mm (8 in)
Nominal Power Handling
130
Sensitivity
99.5 d
Voice Coil Diameter
38 mm (1.5 in)
Former Material
Kapton
Magnetic Gap Depth
8 mm (0.31 in)
Nominal Impedance
4 Ω
Continuous Power Handling
260
Frequency Range
70 Hz - 8000 H
Winding Material
Aluminum
Winding Depth
11 mm (0.43 in)
Parameters
Fs
76 Hz
Qes
0.39
Qts
0.37
Sd
206 cm² (31.93 sq²)
Xmax
3.5 mm (0.14 in
Bl
7.3 Tm
d
162 mm (6.38 in)
Re
3 Ω
Qms
7
Vas
18 dm³ (0.64 ft³)
η0
0.02 %
Mms
14.2 g
Le
0.45 mH
EBP
195 Hz
Design
Surround Shape
Cotton fabric
Recommended Enclosure
11 dm³ (0.388 ft³)
Recommended Loading
Vented Box
Suspension
Cotton fabric
Cone Shape
Exponential
Recommended Tuning
71 Hz
Connection Type
Fast-On
Cone Material
Cellulose fiber
Mounting and Shipping Info
Overall Diameter
206 mm (8.11 in)
Baffle Cutout Diameter
185 mm (7.28 in)
Flange and Gasket Thickness
7.5 mm (0.3 in)
Shipping Units
4 pcs
Bolt Quantity
8 pcs
Bolt Circle Diameter
194 mm (7.64 in)
Depth
91.5 mm (3.6 in)
Net Weight
2.5 kg (5.51 lb)
Basket Material
Steel
Bolt Diameter
5.5 mm (0.22 in)
