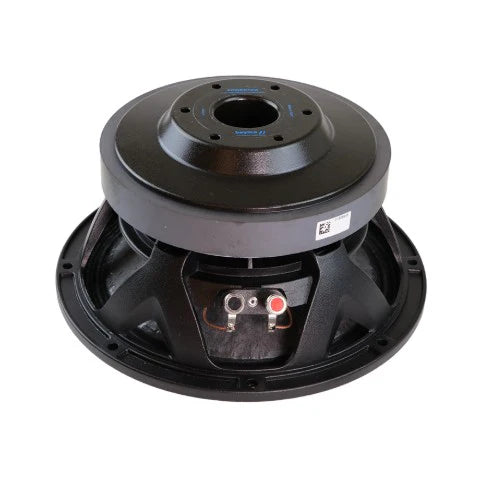

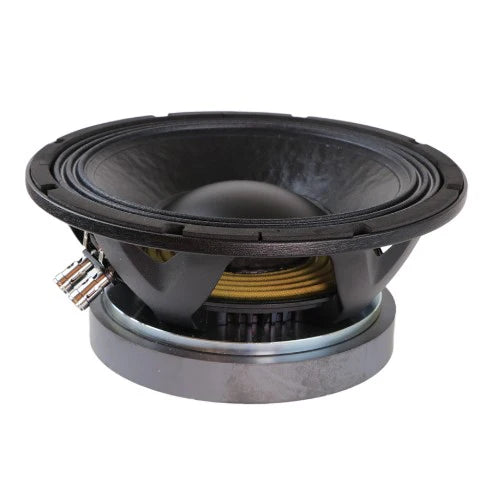

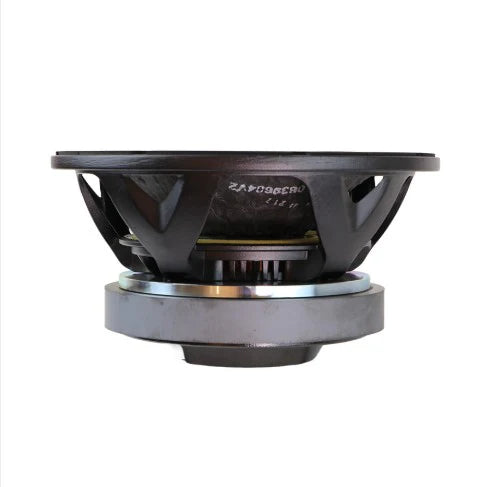

BEYMA - POWER 10IX - 10” MID WOOFER - LOW FREQUENCY SPEAKER

BEYMA - POWER 10IX - 10” MID WOOFER - LOW FREQUENCY SPEAKER

$379.95 USD
$379.95 USD
Sale Sold out
OHM



  • BEYMA POWER 10iX IS A HIGH POWER 10" SPEAKER THAT HANDLES 500 WATTS AES & 1,000 WATTS PROGRAM

    •FEATURES A RUBBER SURROUND, 3" VOICE COIL & A HIGH XMAX OF 13.0MM

    •FREQUENCY RANGE FROM 40HZ TO 3.3KHZ

    •DELIVERS A POWERFUL DEEP SMOOTH TIGHT BASS WITH GOOD MID-BASS

    •49MM PEAK TO PEAK X-DAMAGE

    •WORKS WELL AS A 10" SPEAKER FOR USE IN MOTORCYCLE BAGS, BASS GUITAR CABINETS, ETC

    Specifications

    Nominal Basket Diameter

    10" / 250mm

    Impedance

    8 ohms

    AES Power Rating

    500 Watts
    Program Power  1,000 Watts

    Frequency Response

    40Hz - 3.3kHz

    Sensitivity (1W/1m)

    90dB

    Voice Coil Diameter

    3" / 76.2mm
    Voice Coil Length 30 mm
    Air Gap Height 8 mm
    X Damage (peak to peak) 49 mm
    BL Factor 19 N/A

    Mounting Information
    Overall Diameter 10.3" / 261mm
    Bolt Circle Diameter 9.6" / 243.5mm
    Baffle Cutout Diameter-
    - Front Mount 9" / 228mm
    No. Of Mounting Holes 8
    Overall Depth 5.2" / 133mm
    Net Weight 18.3 lb. / 6.8 kg.
    Shipping Weight 16 lb. / 7.25 kg.

    Materials
    Basket Die Cast Aluminum
    Cone Paper
    Surround Rubber
    Voice Coil Edgewound Copper Wire
    Magnet Ferrite

    Thiele-Small Parameters
    Resonant Frequency (fs) 41 Hz
    Impedance (Re) 6.8 ohms
    Coil Inductance (Le) 1.0 mH
    Mechanical Q (Qms) 8.1
    Electrical Factor (Qes) .46
    Total Q (Qts) .43
    Comp. Equivelant Vol. (Vas) 1.15 ft3 / 32.5 Liters
    Voice Coil Overhang (Xmax) 13.0 mm
    Moving Mass (Mms) 95 Grams
    Surface Area of Cone (Sd)m2 0.038
    Reference Efficiency .5%
    Displacement Volume (Vd) 505 cm3
