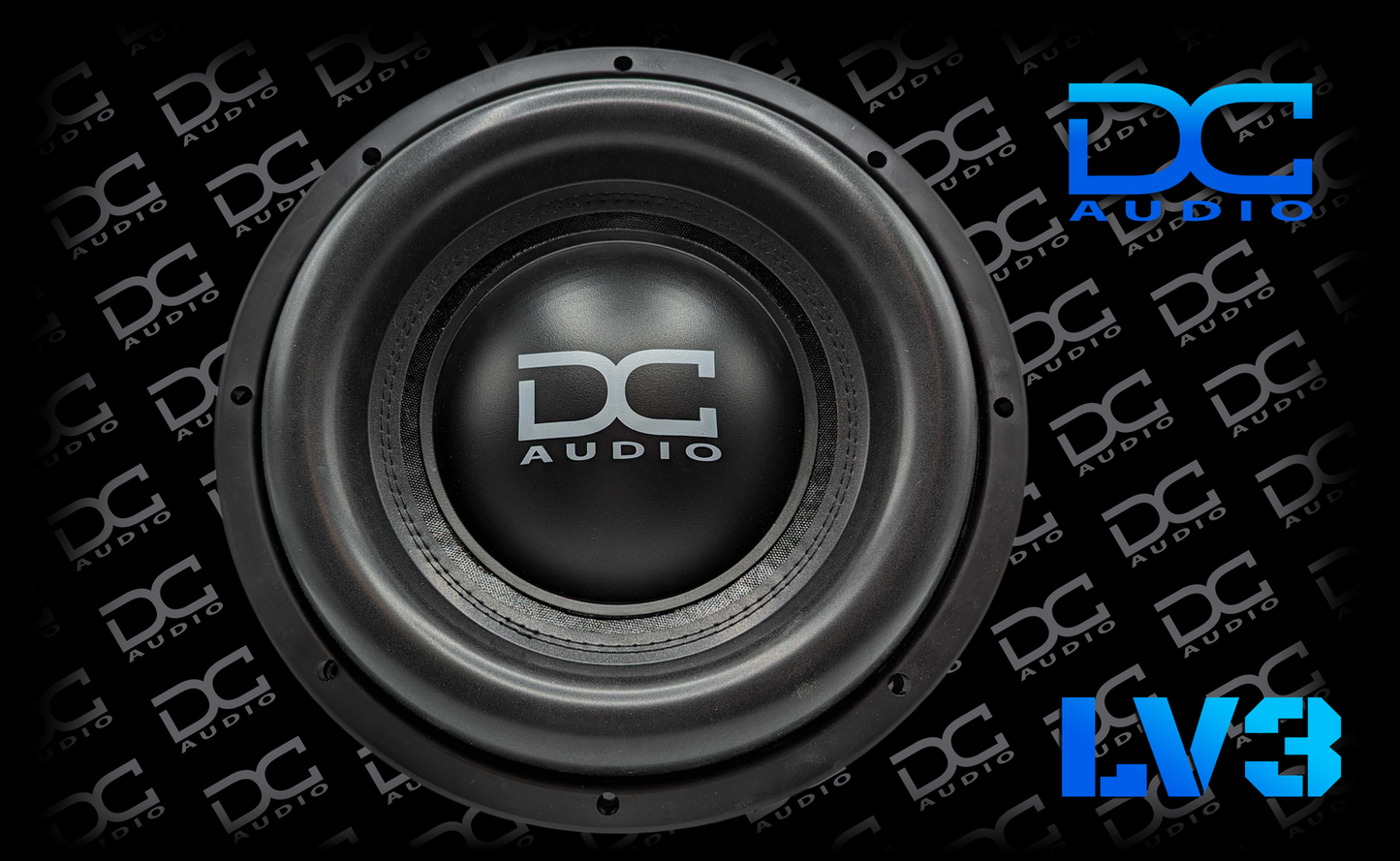

DC Audio
DC Audio Level 3 (Contact for Pricing)
DC Audio Level 3 (Contact for Pricing)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
| Level 3 Subwoofer | 10" | 12" |
|---|---|---|
| Mounting Depth | 6.00" | 6.50" |
| Mounting Hole Diameter | 9.35" | 11" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 3.0" | 3.0" |
| Displacement | .15 ft³ | .16 ft³ |
| Power Handling rms/peak | 1000/2000 | 1000/2000 |
| Ohm Options | d1/d2/d4 | d1/d2/d4 |
| Sd | 324 cm² | 457 cm² |
| Vas | 10.92 L | 22.47 L |
| Cms | 73.10 uM/N | 75.65 uM/N |
| Mms | 187 g | 236.11 g |
| Fs | 43.02 Hz | 37.65 Hz |
| Bl | 16.81 N/A | 16.69 N/A |
| Re | 4.28 Ohm | 4.51 Ohm |
| Le | 2.07 mH | 1.97 mH |
| Qms | 7.43 | 7.29 |
| Qes | 0.766 | 0.905 |
| Qts | 0.695 | 0.805 |
| Xmax | 23mm | 23mm |
| Ref SPL @1 watt | 82.29 db | 82.97 db |
| Suggest Sealed Box | .65 ft³ | 1.0 ft³ |
| Suggested Ported Box | 1.0 ft³ | 1.25 ft³ |
