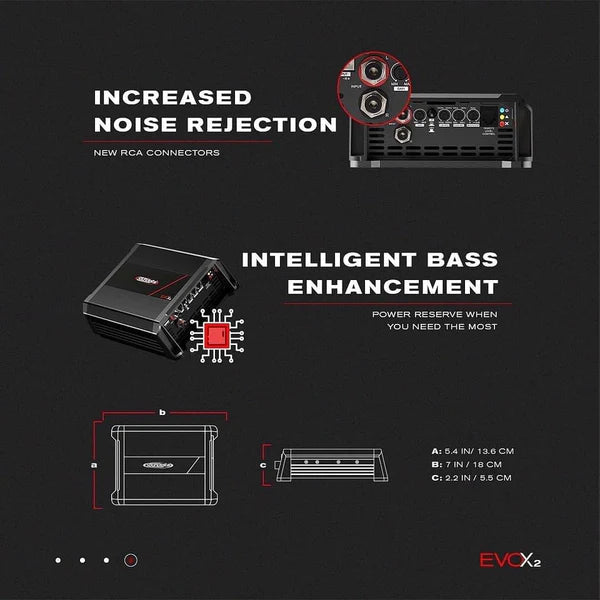

NEW 1000.1 EVOX2 1000WATT RMS SUBWOOFER AMPLIFIER

TECHNICAL SPECIFICATIONS

1000.1 EVOX2 – 1Ω
Power @ 4Ω: 1 X 476 WRMS
Power @ 2Ω: 1 X 721 WRMS
Power @ 1Ω: 1 X 1000 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 44 A
Current Draw (Max): 88 A
Recommended Fuse (Music): 50 A
Total Efficiency: 89%
Damping Factor: >3000
Frequency Response (-3dB): 5Hz – 25kHz
SNR: 94dB
Crossover HPF: 5Hz – 40Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm

1000.1 EVOX2 – 2Ω
Power @ 4Ω: 1 X 739 WRMS
Power @ 2Ω: 1 X 1000 WRMS
Power @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 45 A
Current Draw (Max): 90 A
Recommended Fuse (Music): 50 A
Total Efficiency: 86%
Damping Factor: >3000
Frequency Response (-3dB): 5Hz – 25kHz
SNR: 94dB
Crossover HPF: 5Hz – 40Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
